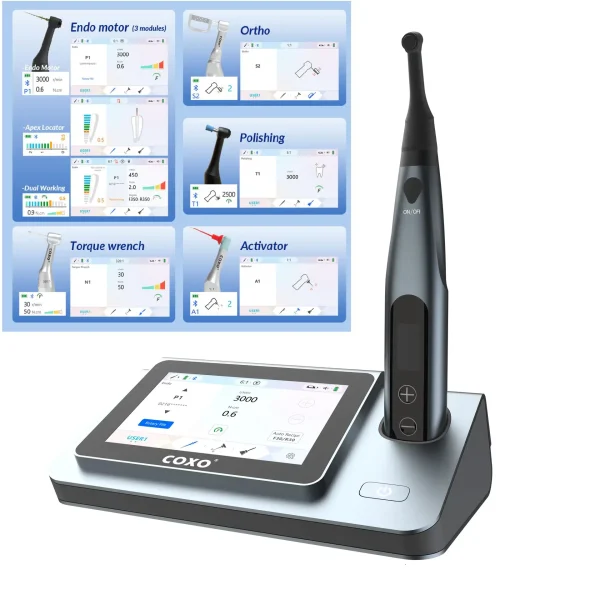

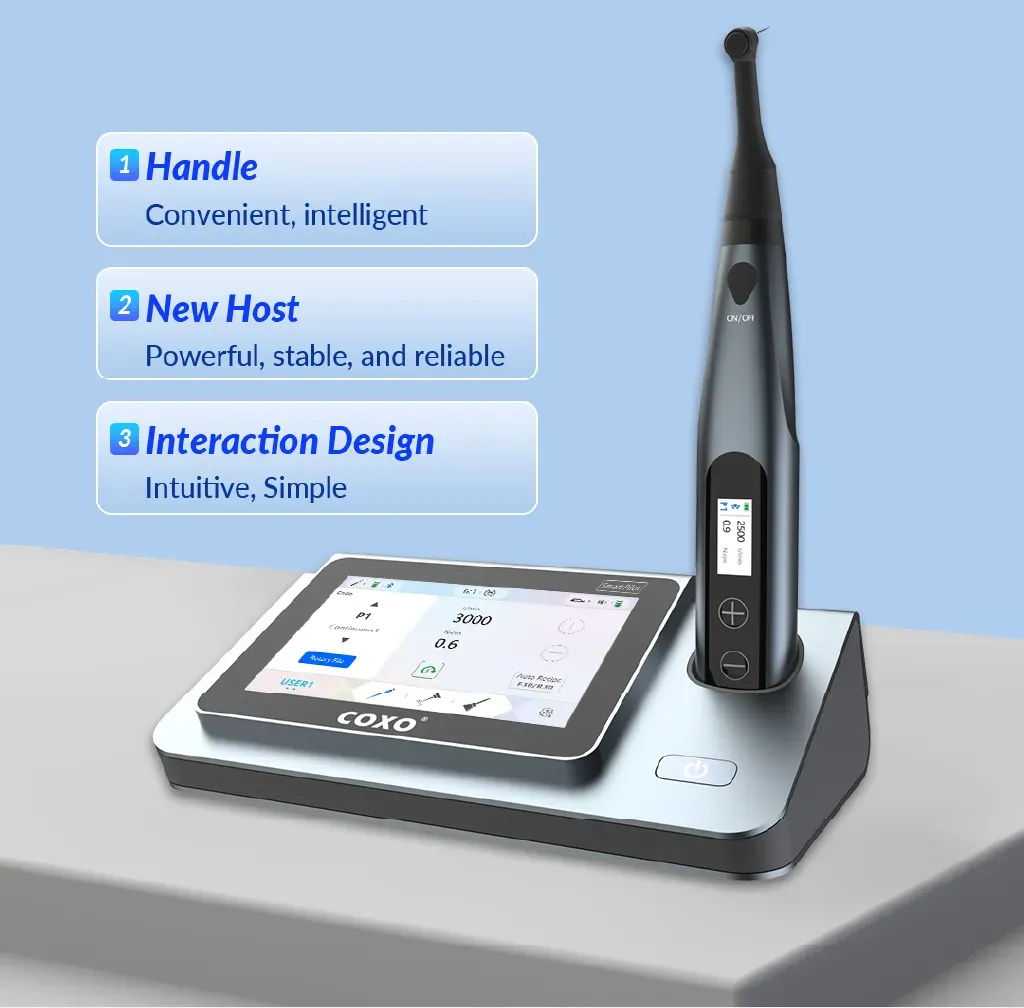

The COXO C-Smart-I Pilot is an advanced, true-wireless endodontic motor with an integrated apex locator and a high-performance brushless motor. It features a 5-inch touchscreen host that communicates via Bluetooth with a cordless, LED-lit handpiece, offering preset support for over 30 global file systems.[
Technical Specifications & Features
Technical Specifications
General Specifications
- Product type: Wireless Endodontic Motor with Built-in Apex Locator
- Model: COXO C-Smart I Pilot (2025 Version)
- Power supply: 100–240 V AC
- Display: 5-inch Colour LCD
- Resolution: 800 × 480
- Brushless motor
- Wireless operation

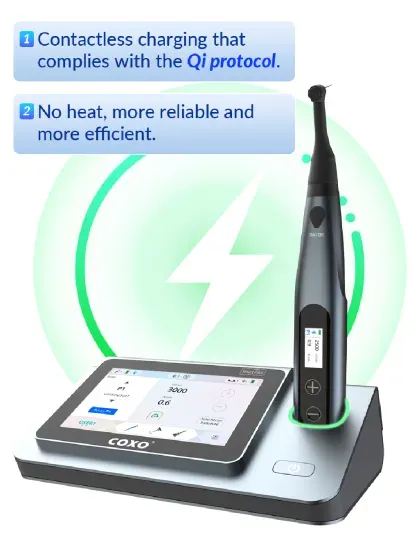

- High-capacity rechargeable battery
- Touchscreen optimised for gloved operation
- Adjustable brightness
- Adjustable sound alerts
- 360° handpiece rotation
- Sterilisation temperature: 135°C
Endodontic Performance
- Speed range: 100–3,000 rpm
- Adjustable torque: 0.6–5.0 N·cm
- Maximum torque: 5.0 N·cm
- Compatible with most rotary file systems
Implant Torque Function
- Adjustable torque range:
5–50 N·cm (optional torque wrench handpiece)
Certifications
The COXO C-Smart I Pilot is CE and ISO certified, meeting recognised European standards for medical device quality, safety and performance.

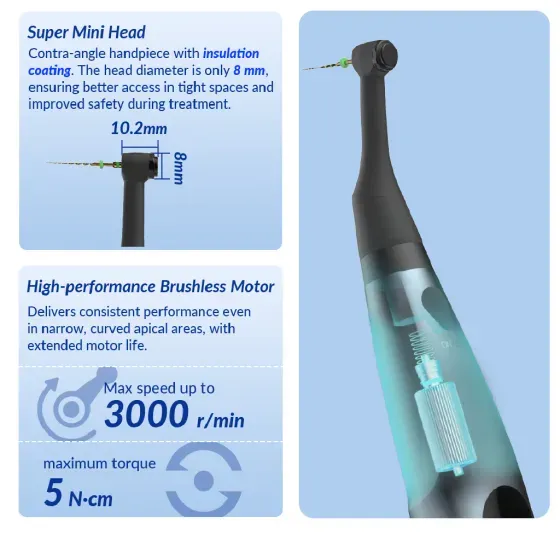

- Brushless Motor: Provides stable, quiet operation, higher torque accuracy, and a longer lifespan.
- Speed Range: Adjustable from 100 up to 3,000 RPM (depending on specific operational mode; standard file presets run approx. 150–1,000 RPM).
- Torque Range: 0.6 to 5.0 N.cm.

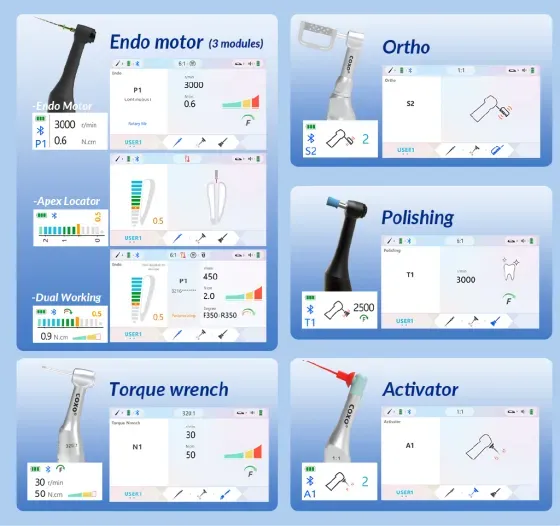

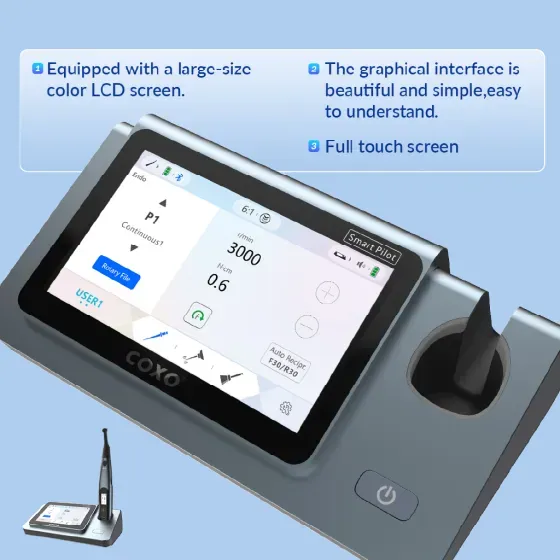

- Display: 5-inch color touch screen with intuitive graphical interface optimized for glove use.

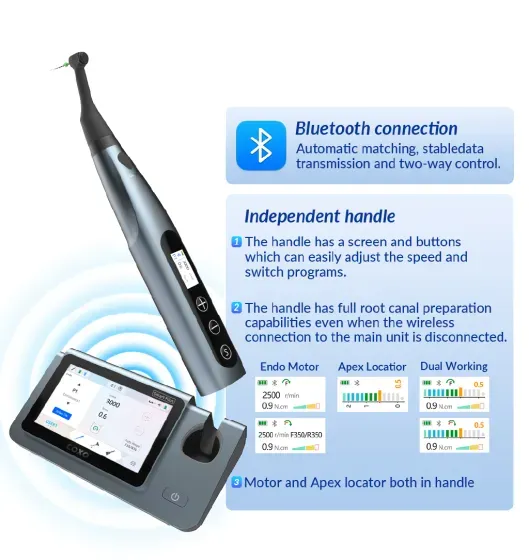

- Connectivity: Bluetooth wireless link (10-meter effective range) between the large base screen and the cordless handpiece.
- Apex Integration: Built-in apex locator functions directly through the handpiece by plugging in the test wire
